52 26 008 Removing and installing/replacing backrest side section on left or right rear seat backrest (2' Series convertible models)

Special tools required:

• 2 298 504

• Open soft top
• Unlock the rear seat backrest and tilt forward

Removal:

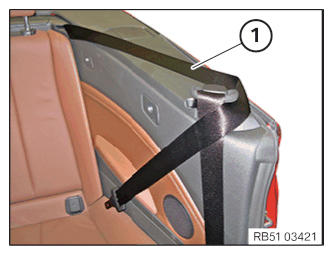

Remove the seat belt strap (1) from the working area.

Courtesy of BMW OF NORTH AMERICA, INC.

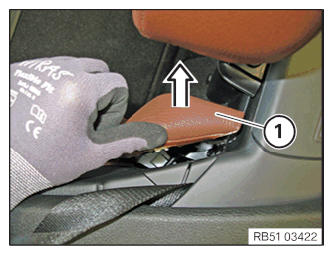

Lightly push the backrest side section (1) toward the center of the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

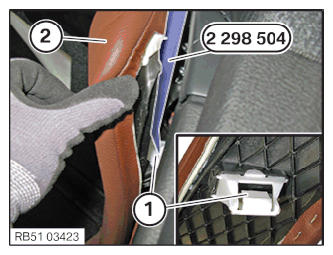

Press special tool 2 298 504  onto the lock (1) to release the backrest side section (2).

Pull the backrest side section (2) out toward the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

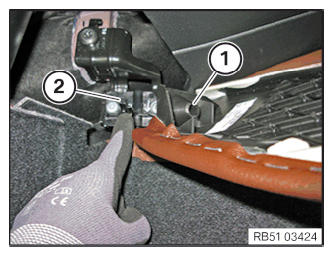

Slide the mounting (1) into the guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.

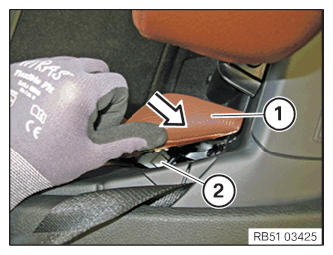

Push the backrest side section (1) in the direction of the arrow until the clip (2) can be heard latching.

Courtesy of BMW OF NORTH AMERICA, INC.

• Lock the rear seat backrest
• Close soft top.
