52 26 005 Removing and installing/replacing rear seat (2' Series coupe and convertible, 2017-2021)

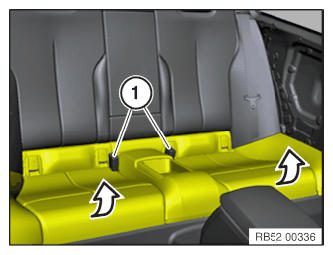

Unclip rear seat towards top and remove seat belt buckle (1).

Installation note:

Feed seat belt buckles (1) into recesses in rear seat.

G15357986Courtesy of BMW OF NORTH AMERICA, INC.
