Removing and installing/replacing switch cover on left or right front door trim panel
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Refer to REMOVING COVER ON DOOR HANDLE .

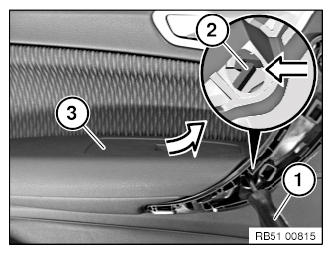

Use a suitable tool (1) to release latch mechanism (2) of switch cover (3) in direction of arrow.
Unclip switch cover (3) from door trim panel towards front/top.
Disconnect plug connection and remove switch cover (3).
Installation note:

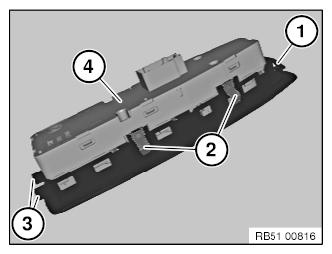

Following parts must not be missing or damaged:
| (1) | Catch |
| (2) | Retaining clips |
| (3) | Guides |
Replacement:
Remount switch for power window (4). Refer to 61 31 118 REPLACING THE POWER WINDOWS REGULATOR ON THE PASSENGER'S SIDE .
