51 32 211 Removing and installing/replacing rubber window seal for front left or right side window
Necessary preliminary tasks:
- Refer to REMOVING REAR-VIEW MIRROR on front door
- Refer to REMOVING WEATHER STRIP ON OUTSIDE OF FRONT DOOR .
- Refer to REMOVING WEATHER STRIP ON INSIDE OF FRONT DOOR .
IMPORTANT:
The "NOTES ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

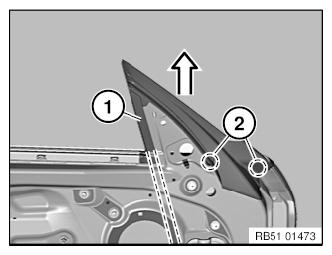

Release rubber window seal (1) at lugs (2).
Pull out rubber window seal (1) from window guide rail.
Installation note:
Moisten rubber guide (1) prior to fitting with APPROVED LUBRICANT .
Insert rubber window seal (1) at front/bottom correctly into window guide rail.

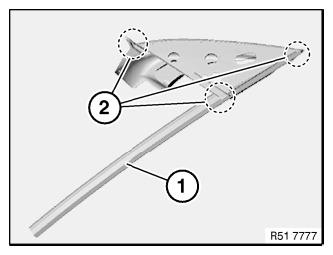

Installation note:
Rubber guide (1) must not be damaged in corners (2).
