51 23 131 Adjusting left or right striker on engine compartment lid (2' Series coupe and convertible, 2017-2021)

Adjusting striker is described in:

Adjusting engine compartment lid. Refer to 41 61 014 ADJUSTING HOOD .

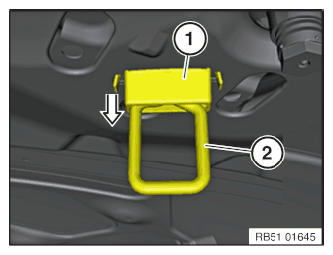

Unclip anti-twist lock (1).

Unscrew retaining hook (2).

Installation note:

Adjust engine compartment lid. Refer to 41 61 014 ADJUSTING HOOD .

G15357441Courtesy of BMW OF NORTH AMERICA, INC.
