63 17 070 Removing and installing/replacing left fog light (M Sport package) (2' Series coupe and convertible, 2017-2021)

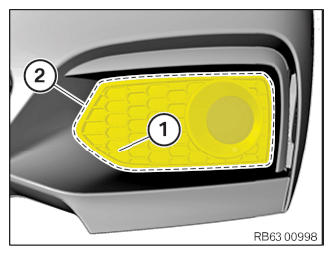

Release ornamental grille (1) in area (2) from latch mechanisms towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

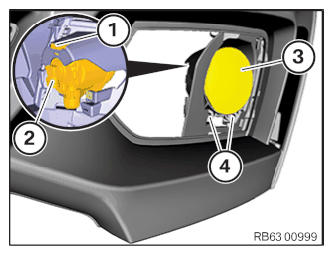

Release latch mechanism (1).

Unfasten plug connection (2) and disconnect.

Release screws (4).

Tightening torque 63 12 2AZ .

Remove fog light (3) towards the front.

Installation note:

Catch (1) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:

• If necessary, remount BULB .
• Adjust FOG LIGHTS .
