51 76 030 Removing and installing/replacing engine compartment lid gasket

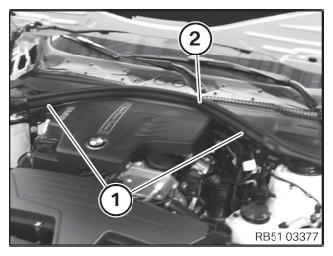

Removal:

Release screw (1).

Remove cover (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

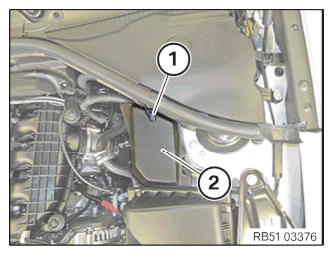

Left and right gasket:

Release expanding rivet (1).

Remove gasket (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

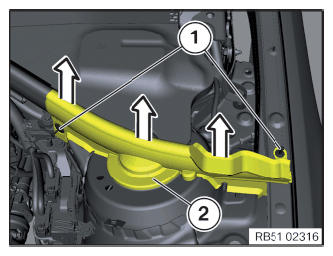

Center gasket

Detach cable (1) from gasket (2).

Remove gasket (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Center gasket

Attach cable (1) in the gasket (2).

Mount gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Left and right gasket:

Mount gasket (2).

Mount expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

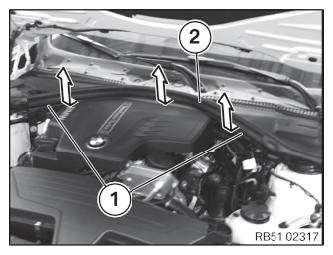

Install cover (2).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
