51 64 060 Removing and refitting/replacing left or right front end strut (2' Series convertible models)

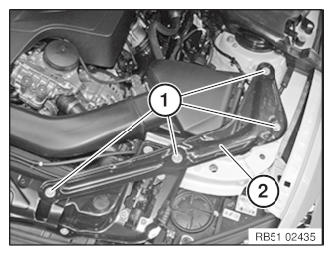

Release screws (1) and remove front end strut (2).

Tightening torque 51 61 4AZ .

G15357755Courtesy of BMW OF NORTH AMERICA, INC.
