51 47 315 Removing and installing/replacing front carpet for passenger compartment (2' Series coupe and convertible, 2017-2021)
Necessary preliminary work:
- Refer to CLAMPING OFF BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Remove both front seats. Refer to REMOVING AND INSTALLING FRONT SEAT, PASSENGER'S SIDE .
- Refer to REMOVING COMPLETE ACCELERATOR PEDAL MODULE .
- Refer to REMOVING CENTER CONSOLE .
- Remove front left/right footwell side trim panel. Refer to REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
- Remove COVER FOR CENTRAL BASS SPEAKER left/right
IMPORTANT:
Risk of damage!
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.

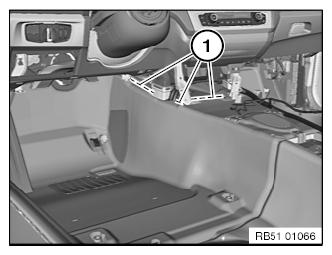

Cut out the carpet along the lines (1), including on the right side.
Remove carpet towards rear/top and if necessary feed out cable.
Installation note:

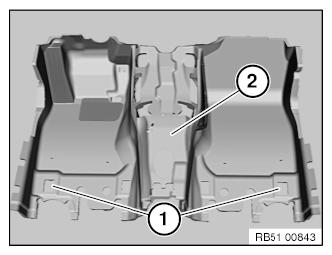

Apertures (1) serve as fixing points for fitting carpet.
Replacement:
Lay removed carpet over new one and transfer cuts to new carpet.
