51 47 162 Removing and installing/replacing right luggage compartment wheel arch panel (2' Series convertible models)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Refer to REMOVING COVER FROM TAIL PANEL .
• Refer to REMOVING UPPER LUGGAGE COMPARTMENT TRIM PANEL .

Removal:

Version with lashing eye:

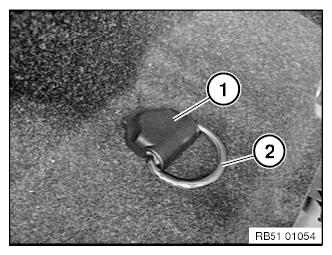

Lever out cover (1) and release screw underneath.

Remove lashing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version with oddments tray:

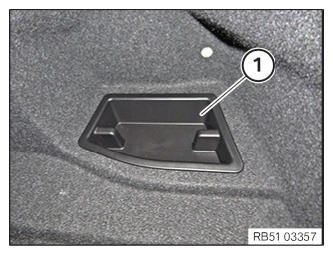

Unclip and remove cover (1) upwards with special tool 00 9 325  .

Courtesy of BMW OF NORTH AMERICA, INC.

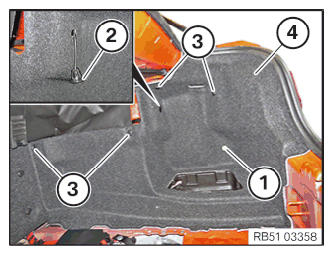

Pull out and detach fuel tank release (1).

Remove emergency release (2) and detach the cable.

Release clamps (3).

Feed out wheel arch panel (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement (depending on version):

Remount 12 V POWER SOCKET if necessary.

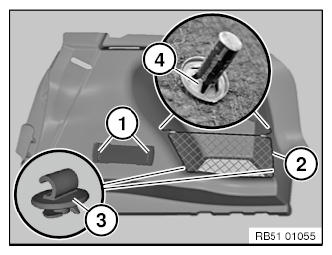

Unclip tensioning strap (1).

Detach luggage compartment net (2) at holder (3).

Release lock washer (4) and feed out luggage compartment net (2).

Unscrew holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

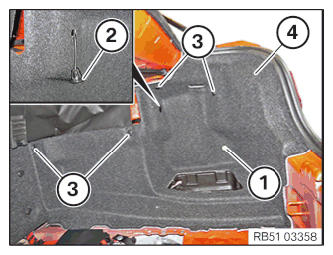

Feed in wheel arch panel (4).

Connect fuel tank release (1).

Attach cable and install emergency release (2).

Mount clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Version with oddments tray  :

Install shelf (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lashing eye:

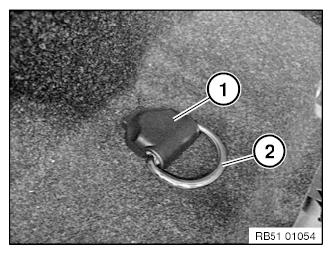

Install lashing eye (2) and tighten down bolt.

Tightening torque 51 47 1AZ .

Mount cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING COVER ON TAIL PANEL .
• Refer to INSTALLING UPPER LUGGAGE COMPARTMENT TRIM PANEL
