51 46 011 Removing and installing (replacing) trim panel for storage shelf (with through-loading system) (2' Series coupe models)

Necessary preliminary tasks:

• Refer to REMOVING LEFT/RIGHT SEAT BELT COVER .
• Refer to REMOVING TRIM PANEL FOR ROOF PILLAR AT REAR  left/right
• Reposition left/right rear seat backrest

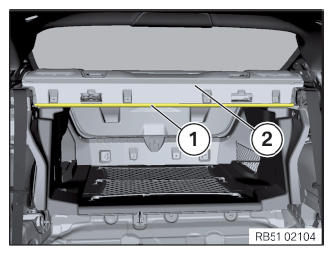

Pull off gasket (1) from storage shelf (2).

Courtesy of BMW OF NORTH AMERICA, INC.

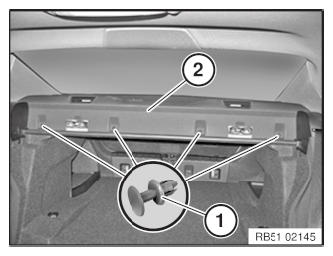

Release expanding rivet (1).

Slightly raise storage shelf (2) at front and unlock and detach plug connections underneath for speaker.

Remove storage shelf (2) toward the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

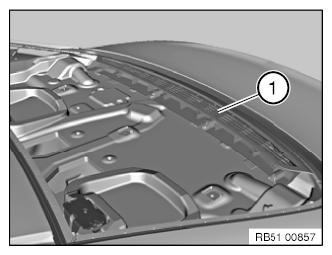

Make sure storage shelf is correctly seated in ventilation grille (1).

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement with appropriate version:

• Modify left/right speaker. Refer to 65 13 195 REMOVING AND INSTALLING/REPLACING REAR TWEETER (IN STORAGE SHELF) .
