51 44 150 Replacing trim for headliner, front (2' Series convertible models)

Necessary preliminary work:

• If necessary, open soft top
• Refer to REMOVING THE ROOF FUNCTION CENTER .
• Refer to REMOVING BOTH VANITY MIRROR LIGHTS .
• Refer to REMOVING BOTH SUN VISORS .
• Refer to REMOVING TRIM PANEL FOR ROOF PILLAR  (A-pillar) left/right.

Removal:

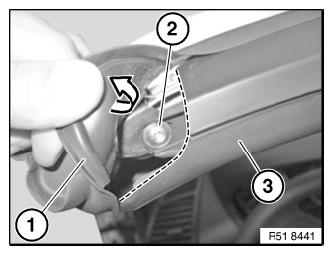

Let down edge protection (1) on top left and right.

Release the underlying screw (2) on the trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.

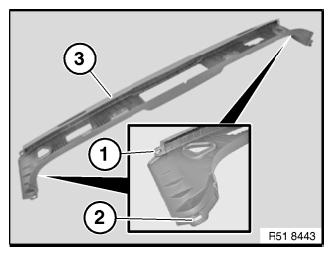

Release screw (1).

Feed out trim (2) sideways on the edge protection (3) and remove from rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

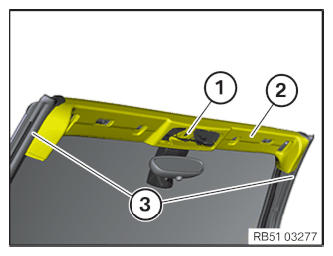

Insert trim (2) and ensure correct fit on the edge protection (3).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Let down edge protection (1) on top left and right.

Tighten screw (2) beneath it.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING ROOF FUNCTION CENTER .
• Refer to INSTALLING BOTH VANITY MIRROR LIGHTS .
• Refer to INSTALLING BOTH SUN VISORS .
• Refer to INSTALLING TRIM PANEL FOR ROOF PILLAR  (A-pillar) left/right.
