51 23 211 Removing and installing/replacing pull cable for hood/hood locks at front (2' Series coupe and convertible, 2017-2021)
Necessary preliminary tasks:
- Remove left/right engine compartment lock. Refer to REMOVING AND INSTALLING/REPLACING RIGHT ENGINE COMPARTMENT LID LOCK. .

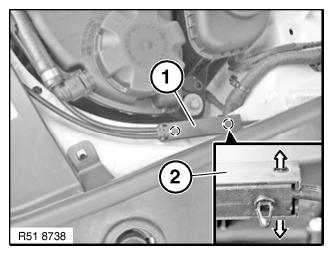

Unclip clutch housing Bowden cable (1) at marked points.
Installation note:
Clips must not be damaged.
To open up clutch housing cover, lever up cover (2) in direction of arrow.

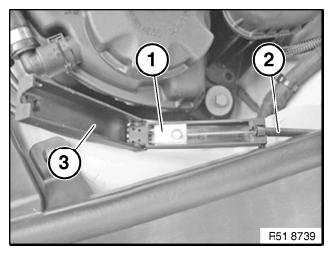

Feed rear Bowden cable (2) out of holder (1) and clutch housing (3).
NOTE:
Depending on the version, two variants of the Bowden cable are possible.
Version 1: Bowden cable rear intake silencer housing
Version 1: Bowden cable rear intake silencer housing
Version 2: Longer Bowden cable stored in the cross member
Version 1:
Release Bowden cable (1) on holder (2).
Feed out Bowden cable (1).
Replacement:
If a longer Bowden cable (1) installed, the Bowden cable must be installed as described in Option 2.

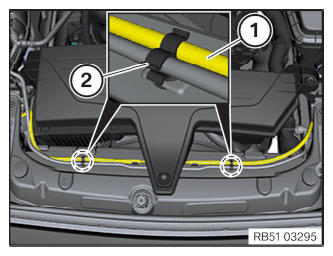

Version 2:
Release Bowden cable (1) on holder (2).
Feed out Bowden cable (1).
NOTE:
When converting from version 1 to version 2, the holder (2) must be retrofitted.
