51 23 110 Removing and installing/replacing left engine compartment lid lock (2' Series coupe and convertible, 2017-2021)

Necessary preliminary tasks:

F23/F87/F33 only:

• Refer to REMOVING AND REFITTING/REPLACING LEFT OR RIGHT FRONT END STRUT .

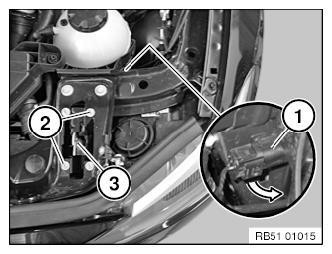

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

Release screws (2) and feed out engine compartment lid lock (3).

Tightening torque 51 23 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

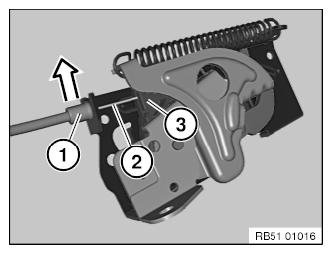

Unclip grommet (1).

Unhook Bowden cable (2) from engine compartment lid lock (3).

Courtesy of BMW OF NORTH AMERICA, INC.
