51 23 100 Removing and installing/replacing right engine compartment lid lock. (2' Series coupe and convertible, 2017-2021)

Necessary preliminary tasks:

F23/F33/F87 only:

• Refer to REMOVING AND REFITTING/REPLACING LEFT OR RIGHT FRONT END STRUT .

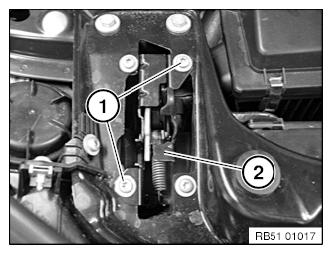

Release screws (1) and feed out engine compartment lid lock (2).

Tightening torque 51 23 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

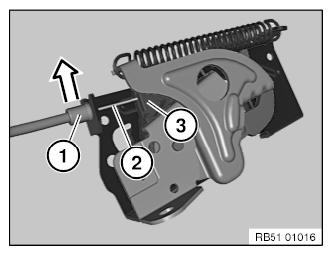

Unclip grommet (1).

Unhook Bowden cable (2) from engine compartment lid lock (3).

Courtesy of BMW OF NORTH AMERICA, INC.
