Pressing output shaft out of drive flange (wheel hub) and drawing in (X6 xDrive 35i, X6 xDrive 50i)

Use special tool, see applicable BMW Workshop Catalogue.

Hydraulic unit - 81 64 2 155 744
Adapter kit 1 - 81 64 2 155 745
Adapter kit 2 - 81 64 2 155 746

The following work steps describe pressing out the output shaft:

Courtesy of VOLVO CARS CORPORATION

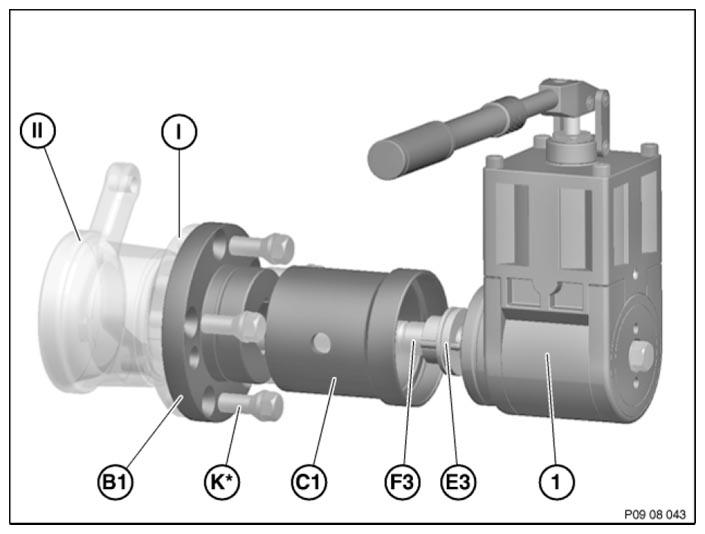

The following tools are required to press out the output shaft from the drive flange, see graphic for arrangement:

Vehicle components

I	Drive flange hub
II	Wheel bearing/swivel bearing

Necessary components

1	Hydraulic unit
E3	Washer M24
F3	Spindle M24 (length 270 mm)
C1	Holding sleeve
K2	Screws M14 x 1.5
B1	Adapter

Secure output shaft against falling out
Press out output shaft with hydraulic unit

The following work steps describe drawing in the output shaft:

Courtesy of VOLVO CARS CORPORATION

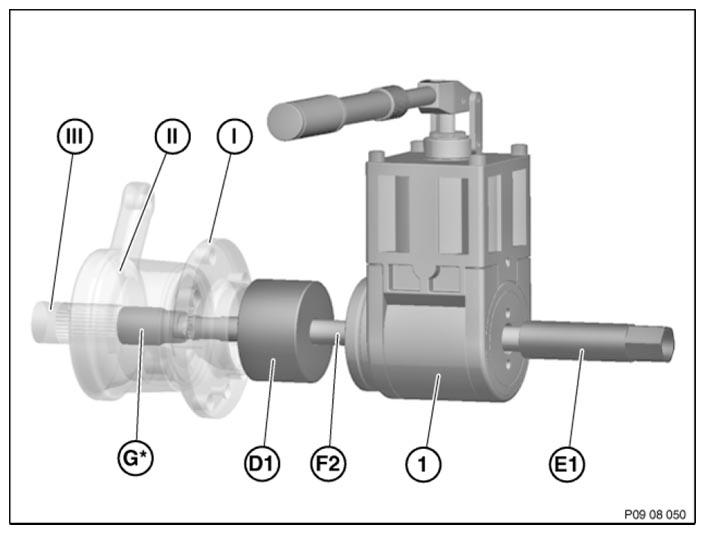

The following tools are required to fit the output shaft in the drive flange, see graphic for arrangement:

Vehicle components

I	Drive flange hub
II	Wheel carrier/swivel bearing
III	Output shaft

Required components for all models and types

1	Hydraulic unit
E1	Holding sleeve M24
D1	Washer
F2	Spindle M24/M20 (length 335 mm)

Components specific to model and type (thread diameter, output shaft)

G3	Adapter M27 x 1.5 to M20

Courtesy of VOLVO CARS CORPORATION

IMPORTANT: Risk of damage!

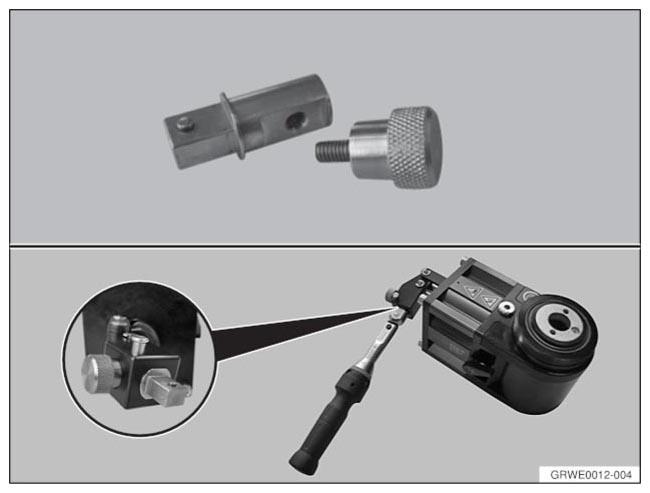

Due to the technical requirements, the special tool used, sleeve G,* is relatively thin-walled. To ensure that the load limit of the tensioning sleeve is not exceeded when drawing in the output shaft, it is essential to use adapter 81 64 2 318 661 in combination with a torque wrench.

Fit adapter with torque wrench to hydraulic unit (see graphic).

Set torque wrench to 20 Nm.

Draw in output shaft with hydraulic tool until the torque wrench is activated.
