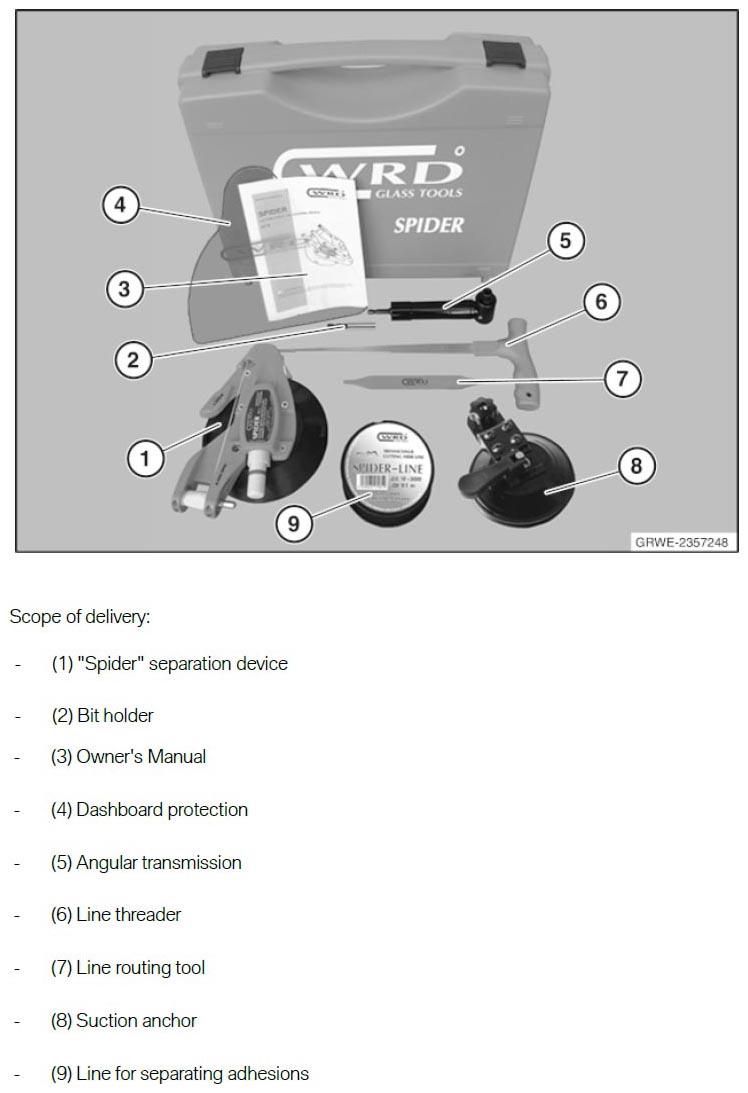

"Spider" dismantling system for bonded glazing
BMW Order number: 81 43 2 357 248
NOTE:
The cord for separating adhesions
and cord routing tool can be ordered individually as spare parts.
| BMW Order number | Spare part designation |
| 81 43 2 344 272 | Cord for separating adhesions |
| 81 43 2 357 312 | Line routing tool |
Technical data
| "Spider" separation device | |
| Dimensions L x W x H | 210 x 155 x 54 mm |
| Suction blade Ø | 150 mm |
| Suction blade load capacity | approx. 62 kg |
| Suction anchor | |
| Dimensions L x W x H | 156 x 115 x 54 mm |
| Suction blade Ø | 115 mm |
| Suction blade load capacity | 47 kg |
| Angular transmission | |
| Dimensions L x W x H | 170 x 60 x 25 mm |
| Gear ratio | 1.285 |
| Direction of rotation | left and right |
| Torque | maximum 60 Nm |
| Primary side connection external hex | 6.3 mm |
| Secondary side connection hexagon socket magnetic | 6.3 mm |
| Bit holder | |
| Dimension L | 60 mm |
| Line to separate bonding | |
| Line length per coil | 91 m |
| Line Ø | 0.8 mm |
| Line routing tool | |
| Dimensions L x W x H | 180 x 17 x 5 mm |
| Line threader | |
| Dimension L | 340 mm |
| Dashboard protection | |
| Dimensions L x W x H | 240 x 230 x 1.25 mm |
Application:
