11 61 368 Removing and installing/replacing rear left charge-air duct (N55) (X6 xDrive 35i, X6 sDrive 35i)

1. Unlocked
2. Locked

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fastener (1).

Unclip vacuum hose (2) and lay to one side.

Disconnect plug connection (3).

Installation note:

plug connection (3) must snap audibly into place!

Illustration shows N54.

Courtesy of BMW OF NORTH AMERICA, INC.

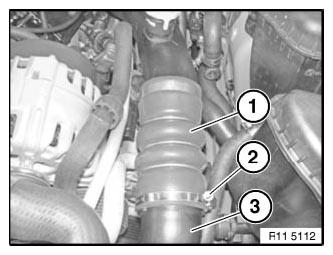

Unfasten hose clamp (2).

Tightening torque 11 61 3AZ .

Detach rear charge-air duct with gaiter (1) from front charge-air duct (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out bracket (1) with a suitable tool in upward direction.

Detach charge-air duct (3) from intake plenum connection (2) and remove in upward direction.

Installation note:

The gasket inside the snap fastener and bracket (1) must be coated with lubricant.

Charge-air duct (3) must snap audibly into place!

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
