18 00 020 Removing and installing complete exhaust system (N55) (X6 xDrive 35i, X6 sDrive 35i)

Special tools required:

• 31 2 220

Danger of injury!

Removal of the exhaust system must be carried out with the assistance of a second person.

Support exhaust system with jack and special tool 31 2 220 or with a suitable lever and secure against falling out.

Release clamp (1).

Tightening torque 18 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 20 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 18 20 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

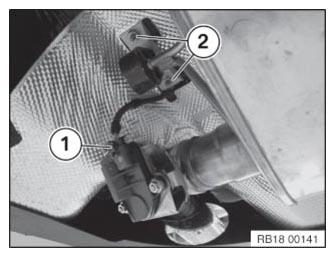

Unscrew nuts (1).

Tightening torque 18 31 4AZ .

Installation note:

Reconnect ground strap.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Tightening torque 18 31 4AZ .

Lower and remove exhaust system with assistance of a second person.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leak tightness.
