Z2 Fuse carrier, rear

Fig 1: Z2 Fuse Carrier, Rear Fuse/Relay ID's & Location (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

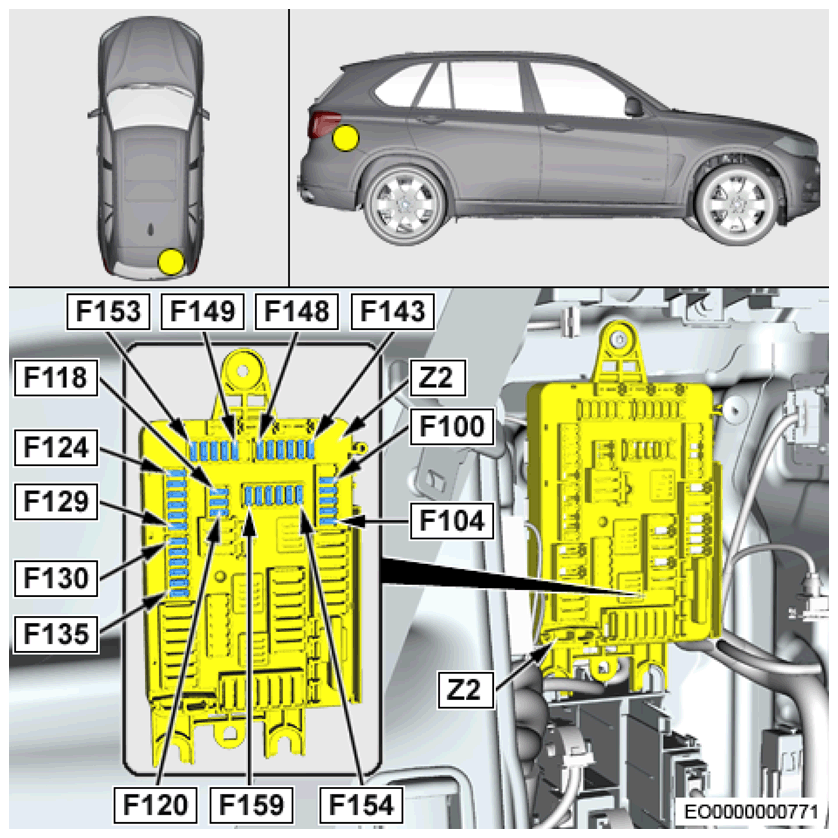

Fig 2: Z2 Fuse Carrier, Rear Fuse/Relay ID's & Location (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

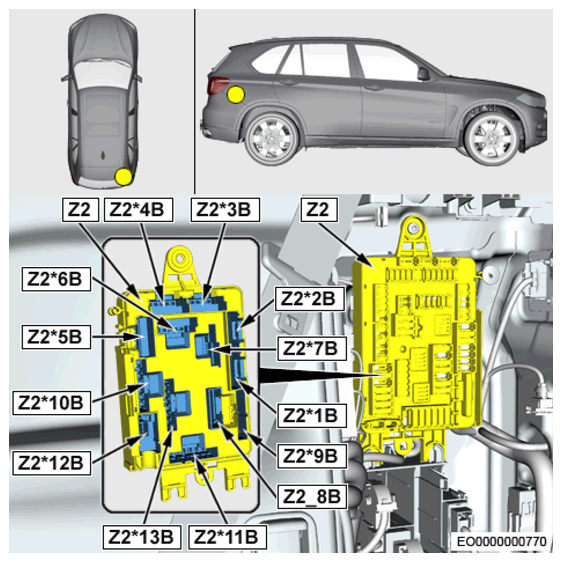

Fig 3: Z2 Fuse Carrier, Rear Fuse/Relay ID's & Location (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
