41 61 014 Adjusting Engine Compartment Lid (X6 2015-2019)
The BATTERY EARTH LEADmust be disconnected on vehicles with AFGS active pedestrian protection!
Read contents of BODY, GENERAL .
The BODY DIMENSIONS specified serve as the basis for the adjusting procedure.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.
Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate colour.
Necessary preliminary tasks:
If fitted: Remove ACTUATOR (active pedestrian protection).
Remove MICROFILTER HOUSING COVER .
The stop screw is preset and must not be used to adjust the engine compartment lid!

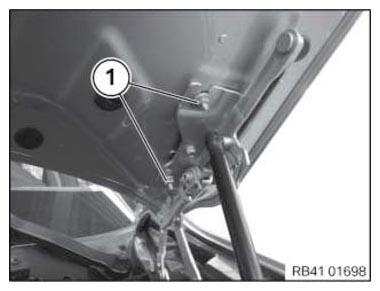

Slacken nuts (1) of hinges on left and right.
Tightening torque 41 61 1AZ .
Systematic schematic diagram:
Adjust engine compartment lid sideways and lengthways.
Strikers must snap into place in engine compartment lid catch.
Height adjustment at hinge:

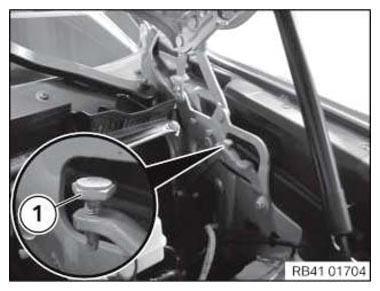

Slacken screws (1) and adjust engine compartment lid.
Tightening torque 41 61 2AZ .
Height adjustment at strikers:

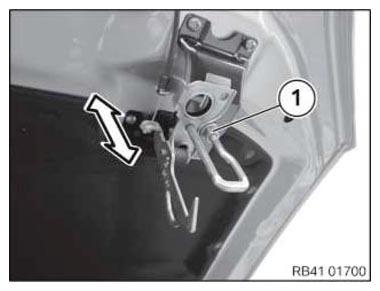

Adjust height by turning nut (1).
Height adjustment of engine compartment lid to side panel by means of stop pad. Refer to ADJUSTING/REPLACING BUMP STOPS REP-REP-RAGRP51-5123X01B - V.22 (X6 2015-2019) .
Incorrect adjustment results in either wobbling of the engine compartment lid or sluggish unlocking.
After Installation note:
- Tighten all screws and nuts to specified torque.
- Touch up unpainted surfaces in the appropriate colour.
- If necessary, adjust front side panels.
