Body Equipment -- Repair X6 (F16)
>>
51 45 Trim Panel, Instrument Panel
>>
51 45 181 Removing and installing/replacing instrument panel trim, bottom right (X6 2015-2019)
>>
When replacing the instrument panel trim: Remounting footwell light"
When replacing the instrument panel trim: Remounting footwell light"

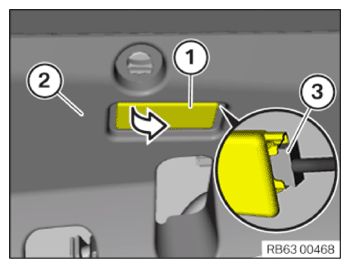

Lever the footwell light (1) out of the instrument panel trim (2) in the direction of the arrow.
Disconnect the plug connection (3) and remove the footwell light (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Connect the plug connection (3) and install the footwell light (1) in the new instrument panel trim (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
