51 12 223 Removing and installing/replacing cover for rear bottom center bumper panel (X6 2015-2019)
Removal:

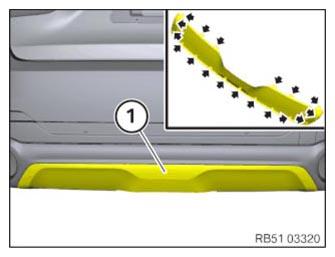

Unclip cover (1) from latch mechanisms and remove from bumper panel.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
Install cover (1) on the bumper panel and clip into the latch mechanisms.
NOTE:
Latch mechanisms on cover (1) must not be damaged or missing.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
