66 33 010 Removing and installing/replacing ultrasound sensor for parking assistant (X6 2015-2019)
Necessary preliminary tasks:
- Partially remove WHEEL ARCH COVER, FRONT LEFT OR RIGHT .

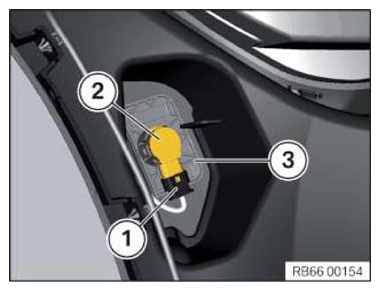

Unfasten plug connection (1) and disconnect.
Unlock latches at marked points.
Pull out ultrasonic sensor (2) from holder (3).
Installation note:
Latch mechanisms must not be damaged!
Make sure ultrasonic sensor is securely seated.
