Removing and installing or replacing capacitor for heating and air conditioning system (X6 M)
Special tools required:
- 00 9 030
WARNING:
Danger of injury! Refrigerant circuit is under high pressure!
Follow the SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A .
Follow SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT OIL .
Avoid contact with refrigerant and refrigerant oil.
Follow the SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A .
Follow SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT OIL .
Avoid contact with refrigerant and refrigerant oil.
Attention!
Risk of damage!
Restart engine only when air conditioning has been correctly filled.
Follow NOTES for opening and replacing parts in refrigerant circuit.
If air conditioning is opened for more than 24 hours: Replace DESICCANT INSERT FOR A/C SYSTEM .
Necessary preliminary work:
- DRAW OFF, EVACUATE AND FILL THE HEATING AND AIR CONDITIONING SYSTEM are not included in the time value given for this job item
- Remove FAN COWL WITH ELECTRIC FAN .
- For version with power steering cooler: Remove TRANSMISSION OIL COOLER .

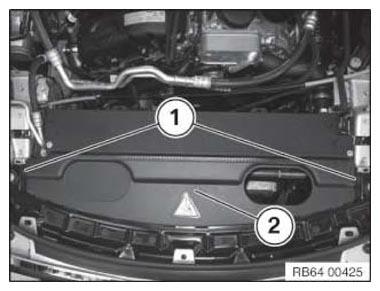

Release screws (1).
Remove cover (2).

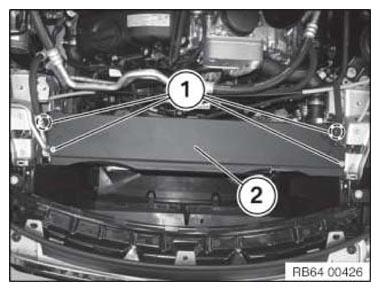

Release screws (1).
Remove cover (2).

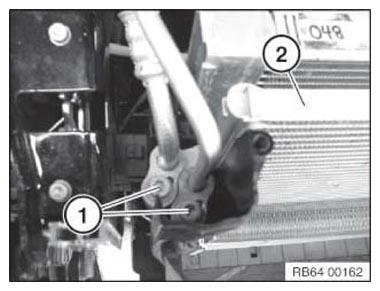

Release screws (1).
Pull out capacitor (2).
Tightening torque 64 53 3AZ .
Installation note:
Replace sealing rings.
Use special tool 00 9 030 to install sealing rings without damaging them.
After installation:
