Removing and installing/replacing intake port (S63 B44 T 2) (X6 M)

Removal:

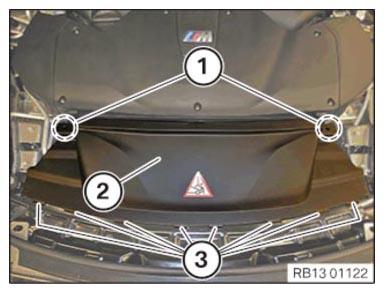

Pull off intake port (2) upwards out of rubber mounts (1).

Feed intake port (2) rearwards and out of the guides (3) then remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed intake port (2) into guides (3) and fasten to rubber mounts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
