Removing and installing/sealing left throttle body (S63 B44 T 2) (X6 M)

Necessary preliminary tasks:

• Switch off ignition.
• Remove left INTERCOOLER .

Removal:

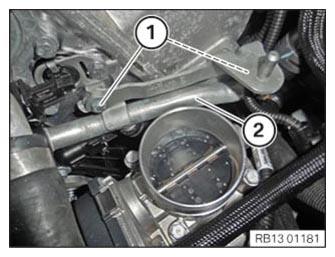

Release screws (1).

Place coolant line (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

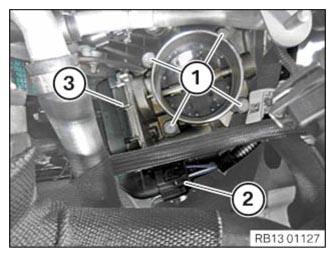

Release screws (1).

Unlock connector (2) and remove.

Remove throttle body (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Replace sealing ring (1) of throttle body (2).

Check plug connections for coolant residue. If necessary, blow clean plug connection with compressed air.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install throttle body (3) and secure with screws (1).

Tighten down screws (1).

Tightening torque 13 54 1AZ .

Attach connector (2). Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount coolant line (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install left CHARGE AIR COOLER .
