Removing and installing/replacing side trim panel, footwell, on A-pillar, right (X6 M)
Special tools required:
- 00 9 325
Necessary preliminary tasks:
- Remove front DOOR SILL COVER STRIP (INSIDE) .
- Remove INSTRUMENT PANEL TRIM, BOTTOM LEFT .
Removal:

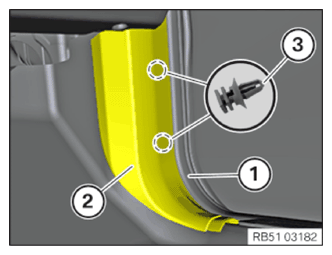

Detach edge protection (1) in area of side trim panel (2).
Release side trim panel (2) from clips (3) with special tool 00 9 325 and remove.
NOTE:
If necessary, lever out clamps (3) remaining in bore holes.
Installation:
NOTE:
If necessary, replace faulty clips (3).
Position side trim panel (2) prefitted with clips (3) on matching holes and snap into place.
Attach edge protection (1) around side trim panel (2).
Required follow-up work:
- Install FRONT DOOR SILL COVER STRIP (INNER) .
- Install INSTRUMENT PANEL TRIM, BOTTOM RIGHT .
