Removing and installing/replacing side trim panel, footwell, on A-pillar, left (X6 M)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove FRONT DOOR SILL COVER STRIP .
• Remove TRIM PANEL FOR PEDAL MECHANISM .

Removal:

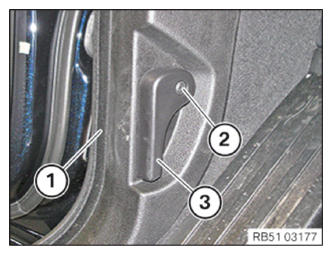

Detach edge protection (1) in area of side trim panel.

Release screw (2) and remove release lever (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unclip clip (2) using special tool 00 9 325.

Remove trim panel (3) towards inside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trim panel (3) and engage in clip (2).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install release lever (3) and tighten screw (2).

Attach edge protection (1) around side trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT DOOR SILL COVER STRIP .
• Install TRIM PANEL FOR PEDAL MECHANISM .
