Remove and install left or right rear door trim panel (X6 M)

Special tools required:

• 00 9 321
• 00 9 325

Necessary preliminary tasks:

• Remove COVER ON DOOR HANDLE .

Removal:

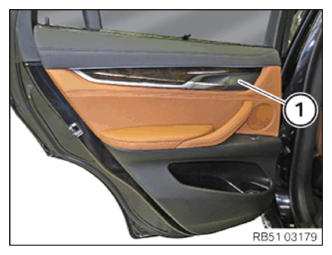

Unclip and remove trim (1) using special tool 00 9 321 at bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

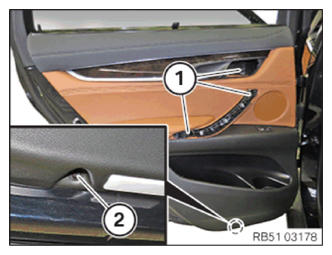

Release screws (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

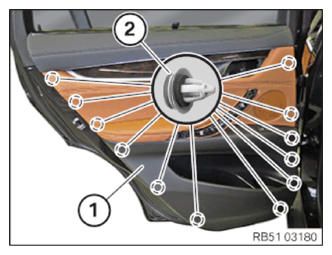

Unclip door trim panel (1) at clips (2) using special tool 00 9 325, starting in area of B-pillar.

Courtesy of BMW OF NORTH AMERICA, INC.

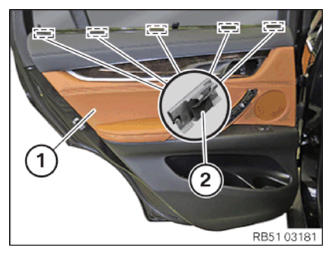

Carefully unclip door trim panel (1) at top from retainers (2).

Disconnect all plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Bowden cable (1) from door lock (2) and remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

1. Grey clip
2. Blue clip

Courtesy of BMW OF NORTH AMERICA, INC.

Seals (3) must not be missing.

Support door trim panel and attach Bowden cable (1) to door lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect all plug connections.

Clip door trim panel (1) at top into clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip door trim panel (1) onto clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Mount COVER ONTO DOOR HANDLE .

• Open side window
• Lock with vehicle key
• Check for ease of movement on locking button linkage
• If necessary, align linkage
