Removing and installing/replacing cover on outside door handle (X6 M)

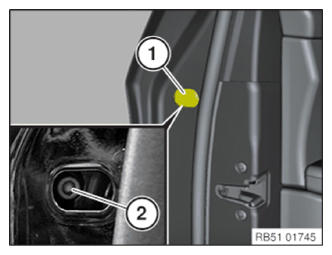

Lever out trim (1) and release screw underneath (2).

Installation note:

Replace faulty cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

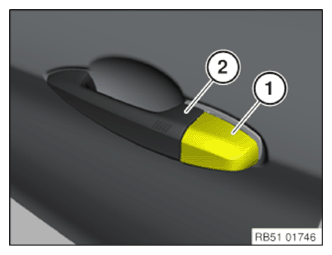

Pull off cover (1) with outer door handle (2) opened slightly.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

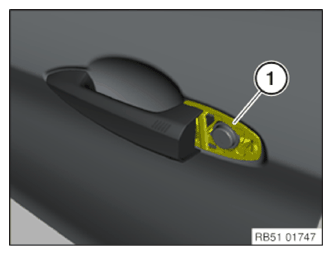

Ensure gasket (1) is seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

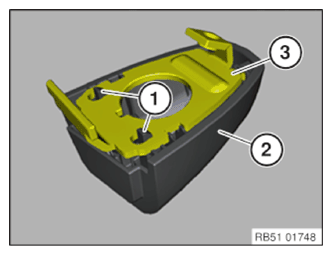

Latch mechanisms (1) of cover (2) must not be damaged.

Replacement:

Remove cover (2) from retaining plate (3).

Courtesy of BMW OF NORTH AMERICA, INC.
