Removing and installing/replacing rear storage box (X6 M)

Special tools required:

• 00 9 340
• 00 9 327

Necessary preliminary tasks:

• Remove SIDE CARPET FROM STORAGE COMPARTMENT  on left and right
• Remove CENTER CONSOLE COVER (CENTER) .

Version with telephone:

• Remove BASE PLATE .

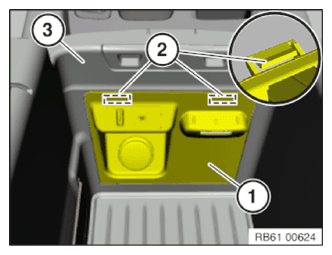

Remove cover (1) at latch mechanisms (2) using special tool 00 9 340 from storage box (3).

Unlock associated plug connections and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

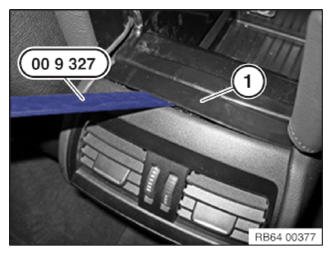

Unclip cover (1) with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

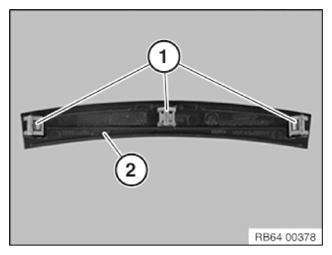

Replace faulty clamps (1) on cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

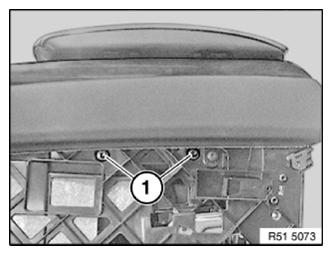

Release left and right screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

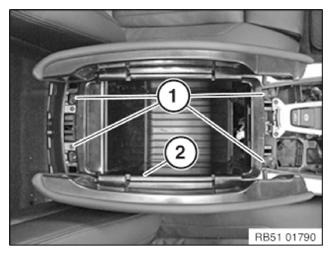

Slacken screws (1) and carefully remove storage box (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount CENTER ARMREST AT STORAGE COMPARTMENT  on left and right.
