Removing and installing/replacing ornamental grille at top of bumper panel (X6 M)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL .

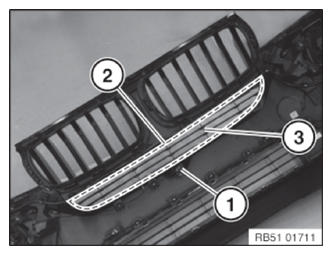

Unfasten plug connection (1) and disconnect.

If necessary, carefully feed out cable and, if necessary, hose pipe for headlight cleaning system.

Release latch mechanisms along line (2) and remove ornamental grille (3).

Installation note:

Latch mechanisms must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount PEDESTRIAN PROTECTION SENSOR .
