Service position of engine compartment lid (X6 M)
Special tools required:
- 2 353 020
WARNING:
Danger of injury and damage! Engine compartment lid must be held by a second person helping.
NOTE:
Graphic shows F01.
If necessary, open engine compartment lid.

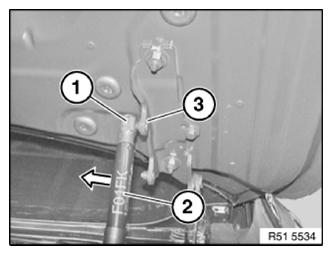

Remove BALL SOCKET (1).
Unclip gas pressure spring (2) in direction of arrow from ball stud (3).

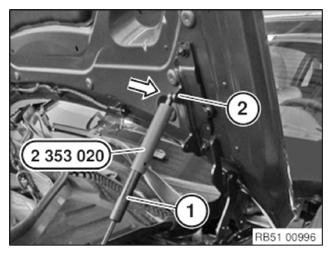

Push special tool 2 353 020 over gas pressure spring (1).
Clip ball socket of special tool 2 353 020 onto ball stud (2).
