Removing and installing/replacing the tailgate trim panel (X6 M)

Necessary preliminary tasks:

• Remove TRIM PANEL FOR REAR WINDOW FRAME  on left/right
• Remove LUGGAGE COMPARTMENT LIGHTS .

Removal:

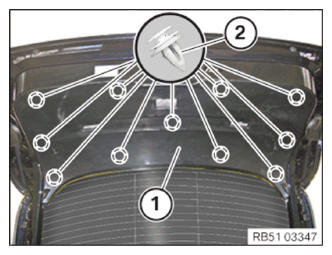

Release trim panels (1) from clips (2).

Unlock associated plug connections and disconnect.

Remove trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lift out clips remaining in body and pre-install on trim panel.

Check clips and replace faulty clips.

Courtesy of BMW OF NORTH AMERICA, INC.

Install trim panel (1).

Connect associated plug connections and lock.

Engage trim panels (1) to clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM PANEL FOR REAR WINDOW FRAME  on left/right
• Install LUGGAGE COMPARTMENT LIGHT .
