Removing and installing/replacing tailgate lock (X6 M)

Necessary preliminary tasks:

• Remove TRIM ON TAIL PANEL .

Removal:

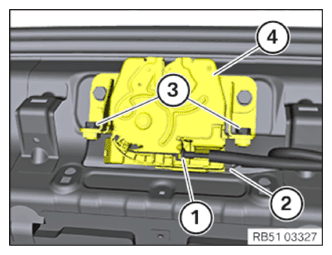

Disconnect cable (1).

Disconnect plug connection (2).

Loosen screws (3) and remove tailgate lock (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach cable (1).

Connect plug connection (2).

Install tailgate lock (4) and tighten screws (3).

Tightening torque 51 24 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM ON TAIL PANEL .
