Adjusting rear lid lock (X6 M)
Necessary preliminary tasks:
- Remove TAILGATE TRIM PANEL .
Prerequisite:
Rear lid must be correctly adjusted to fit; if necessary, ADJUSTING REAR LID .
For ideal adjustment, refer to BODY DIMENSIONS .

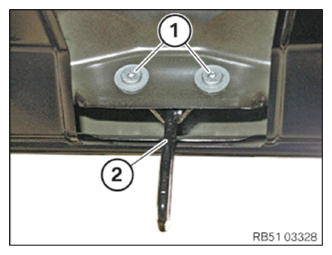

Slacken screws (1) until striker (2) can still just be moved and centers itself.
Close rear lid.
Adjust tailgate to BODY DIMENSIONS .
Tighten down screws (1).
Tightening torque 51 24 3AZ .
NOTE:
When the tailgate is closed, the striker must not touch or scrape against the rear lid lock. Look out for scratch marks.
Version with reversing camera:
After adjusting, check reversing camera and if necessary RECALIBRATE .
Required follow-up work:
- Install TAILGATE TRIM PANEL .
