Removing and installing/replacing outer door handle on left or right rear door (X6 M)

Necessary preliminary tasks:

• Remove COVER ON OUTSIDE DOOR HANDLE .

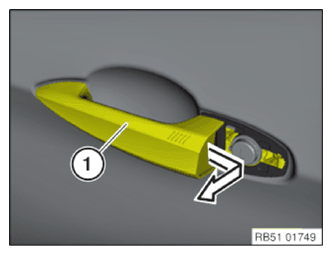

Pull out outer door handle (1) and feed out in direction of arrow.

Version with Comfort Access/light package:

Carefully maneuver out outer door handle (1) and unplug associated electrical connector.

Courtesy of BMW OF NORTH AMERICA, INC.

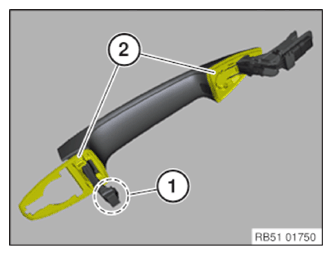

Installation note:

Locator (1) must not be damaged.

Gaskets (2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

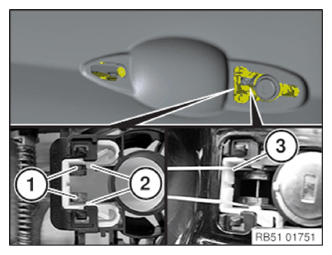

Installation note:

When outer handle is removed the lock actuator (1) is held in fitting position by retaining springs (2).

If the lock actuator is not  in fitting position:

• Use string (3) to pull lock actuator (1) outwards and hold in position.
• Fit outer handle and insert into lock actuator correctly (1).
• Remove string (3)

Carry out function check only with door open.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Version with Comfort Access:

Check outer door handle for proper function before painting.

Connect all connectors to outer door handle and wait approx. 10 seconds.

Perform convenient closing/opening.

Paint outer door handle before installation.

Courtesy of BMW OF NORTH AMERICA, INC.

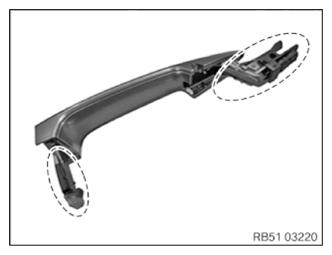

Do not paint the marked area of the outer door handle.

Do not exceed drying temperature of 60°C.

Version with light package:

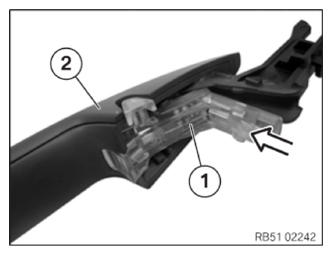

Clip lighting unit (1) into outer door handle (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

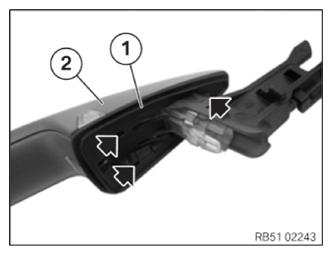

Attach gasket (1) to outer door handle (2).

Ensure gasket (1) is seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
