Removing and installing/replacing driver's side fold-down compartment (X6 M)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Open fold-down compartment.

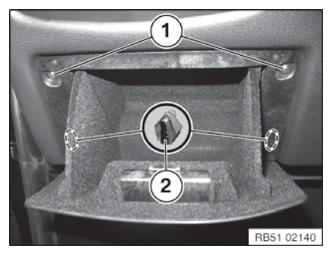

Release screws (1) and pull out fold-down compartment from clamps (2).

Installation note:

Replace missing and faulty clamps (2).
