Removing and installing/replacing front side panel trim on left or right (X6 M)

Necessary preliminary tasks:

• Remove the FRONT WHEEL ARCH COVER (REAR SECTION) .

Removal:

Figure shows view from inner.

Detach the air duct (1) on the latch mechanism (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

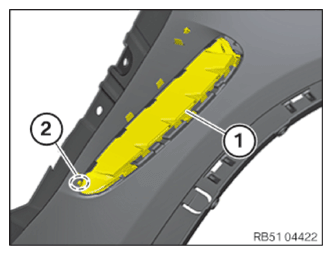

Detach the trim (1) on the latch mechanism (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Figure shows view from inner.

Insert the trim (1) and clip into the latch mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the air duct (1) and clip into the latch mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT WHEEL ARCH COVER (REAR SECTION) .
