Install the roof trim strip
NOTE:
TECHNICAL INFORMATION
Carry out a repair solution if a T-bolt has broken.
For additional information see: 41 00... CLIP REPAIR FOR ROOF STRIP .
Carry out a repair solution if a T-bolt has broken.
For additional information see: 41 00... CLIP REPAIR FOR ROOF STRIP .

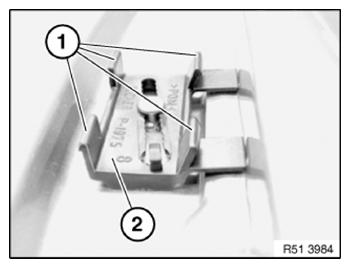

- Check the latch mechanisms (1) of the clamps (2) for damage and replace if necessary.
- Check T-bolts for damage.

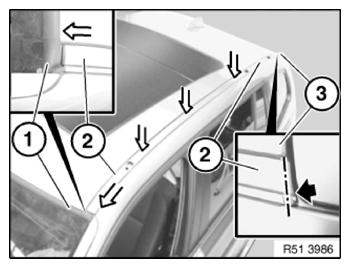

- Position the front of the roof trim strip (2) on the seal (1) in the direction of the arrow.
- Make sure that the roof trim strip (2) is flush with the edge (3) at the rear roof frame (arrow).
- Fully clip in the roof trim strip (2) in direction of arrow.
