Removing and installing/replacing support for rear bumper panel (X6 M)

Necessary preliminary tasks:

• Remove BUMPER PANEL .

Removal:

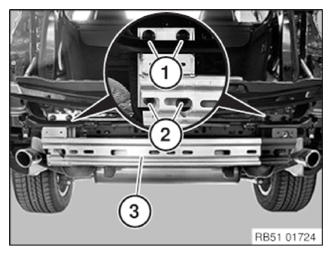

If necessary, release cable clip from support (3).

Remove covers (1) and slacken nuts.

Slacken nuts (2) and remove support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install support (3) and tighten nuts (2).

Tightening torque 51 12 1AZ .

Tighten nuts and install covers (1).

If necessary, mount cable clip to support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Mount BUMPER PANEL .
