22 32 050 Replacing cross member for gearbox mounting (N20 hybrid drive)

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Necessary preliminary tasks:

Removal:

Release screws (1) from high-voltage connector.

Disconnect high-voltage connector (2).

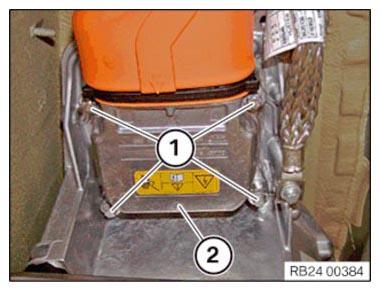

Fig 1: Identifying High-Voltage Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release holder (2) with high-voltage cable from transmission cross member.

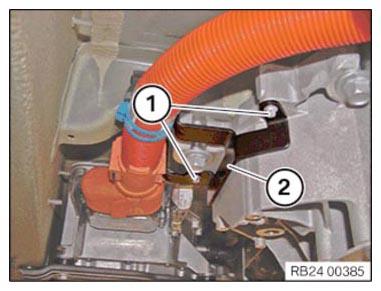

Fig 2: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws.

Release screw (1).

Remove transmission cross member.

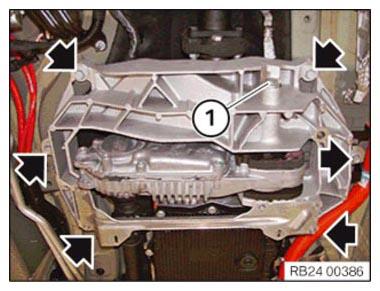

Fig 3: Locating Transmission Cross Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install transmission cross-member.

Insert screws and tighten.

Insert screw (1) and tighten.

Tightening torque 22 32 6/11AZ .

Fig 4: Locating Transmission Cross Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install holder (2) along with high-voltage cable.

Insert screws (1) and tighten.

Tightening torque 12 36 2AZ .

Fig 5: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Connect high-voltage connector (2).

Insert screws (1) and tighten.

Tightening torque 12 36 1AZ .

Fig 6: Identifying High-Voltage Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
