22 11 100 Replacing right engine support arm (N63)
Necessary preliminary tasks:
- Secure ENGINE in installation position.
- Remove REINFORCEMENT PLATE .
- Remove RIGHT STEERING GEAR COVER .
- Release TRACK ROD on steering box

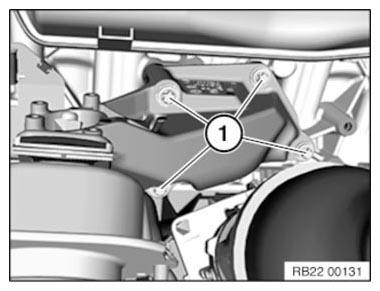

Release bolts (1) and remove engine support arm.
Tightening torque 22 11 3AZ .
