72 12 004 Removing and installing/replacing airbag module for driver's knee protection
WARNING:
Read and comply with safety regulations for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Work on pyrotechnical devices may only be carried out by properly trained technicians.
Incorrect work may result in serious dangers.
Necessary preliminary tasks:
- Disconnect negative battery lead. See DISCONNECTING/CONNECTING BATTERY EARTH LEAD or DISCONNECT/CONNECT BATTERY EARTH LEAD (PLUG-IN HYBRID ELECTRIC VEHICLE) .
- Remove TRIM PANEL FOR PEDAL MECHANISM
Removal:

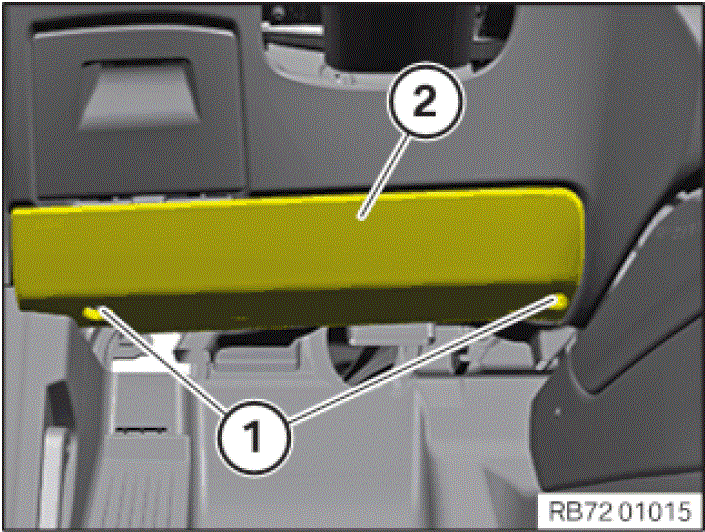

Release screws (1).
Remove airbag module (2) and unlock the plug connection behind it and disconnect.
Installation:
Connect the connector to the airbag module (2).
Renew screws (1).
Parts: Bolts
Position the airbag module (2) and tighten screws (1).
Tightening torque 72 12 03AZ .
