61 31 082 Removing and installing/replacing switch for (left or right) central locking system

Special tools required:

00 9 327

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged. If necessary, protect the working area with yellow plastic adhesive tape.

Remove cover (1) using special tool 00 9 327 from door trim panel (2).

Unlock associated plug connection and disconnect.

Remove cover (1) with switch for central locking system.

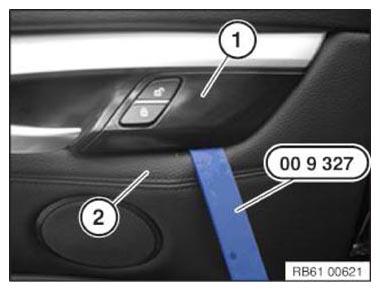

Fig 1: Removing Door Trim Panel Cover Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unlock latch mechanisms (1) on both sides.

Remove switch for central locking system (2) in direction of arrow from cover.

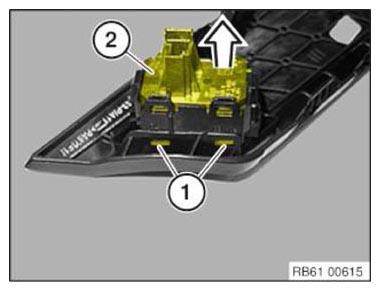

Fig 2: Removing Central Locking System Switch

Courtesy of BMW OF NORTH AMERICA, INC.
