61 12 062 Replace wiring harness at front bumper panel

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

Necessary preliminary tasks:

Disconnect all plug connections present.

Unclip front bumper wiring harness (1) from holder (2; 3).

Thread front bumper wiring harness (1) out of bumper panel and remove.

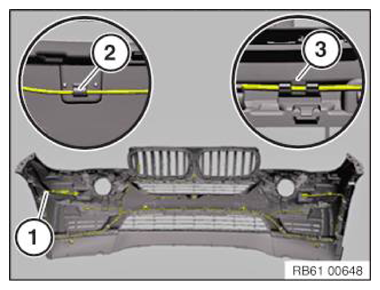

Fig 1: Identifying Front Bumper Panel Wiring Harness And Holders

Courtesy of BMW OF NORTH AMERICA, INC.
