12 41 031 Removing and installing/replacing toothed belt starter motor (N20 hybrid drive)

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

Observe SAFETY INFORMATION for handling electric vehicles.

Necessary preliminary tasks:

Switch off ignition.
Remove TOOTHED BELT FOR STARTER
Remove INTAKE PLENUM

Removal:

Unlock and disconnect plugs (1).

Release nuts (2) and disconnect positive battery cables.

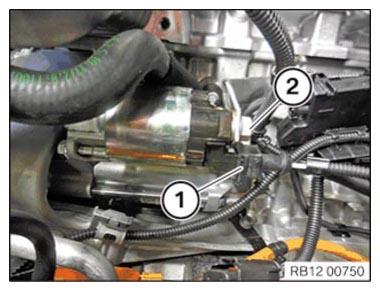

Fig 1: Identifying Plugs And Nuts

G11103716

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

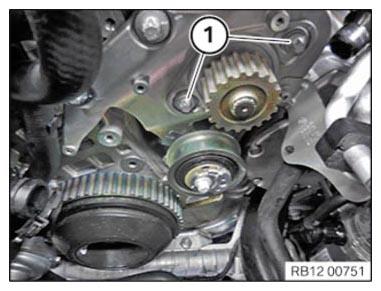

Fig 2: Identifying Screws

G11103717

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out toothed belt starter (1) following the arrows and remove.

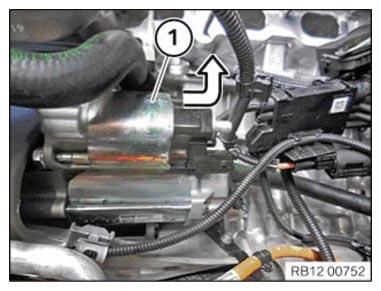

Fig 3: Removing Toothed Belt Starter

G11103718

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in toothed belt starter (1) following the arrows and install.

Fig 4: Installing Toothed Belt Starter

G11103719

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 12 41 1AZ .

Fig 5: Identifying Screws

G11103717

Courtesy of BMW OF NORTH AMERICA, INC.

Attach and lock connector (1).

Connector (1) must snap audibly into place.

Tighten positive battery cable and nut (2).

Tightening torque 12 41 2AZ .

Fig 6: Identifying Plugs And Nuts

G11103716

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install INTAKE PLENUM
Install TOOTHED BELT FOR STARTER
