13 71 170 Removing air duct (N55)

Necessary preliminary tasks:

Release screw (1).

Tightening torque 13 71 9AZ .

Release screw (2) on exhaust turbocharger.

Tightening torque 13 71 8AZ .

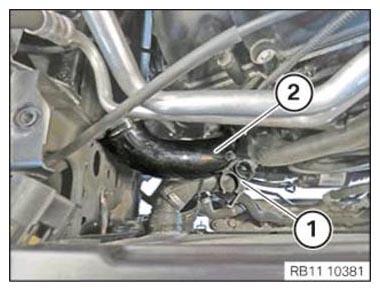

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach air duct (1) from turbocharger.

Fig 2: Identifying Turbocharger Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove coolant lines from bracket (1).

Remove air duct (2) towards top.

Fig 3: Identifying Air Duct And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
