18 00 020 Remove and install exhaust system (N20 PHEV) completely

Special tools required:

31 2 220

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

Observe SAFETY INFORMATION for working with electric vehicles.

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person .

Necessary preliminary tasks:

Remove REAR BUMPER PANEL .
Use a suitable jack to support and secure the exhaust system against falling.

Removal:

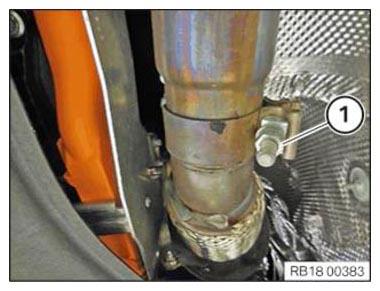

Release clamp (1).

Fig 1: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

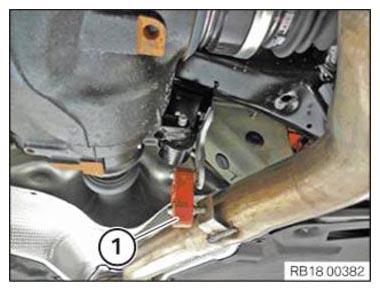

Release rubber mount (1).

Fig 2: Identifying Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

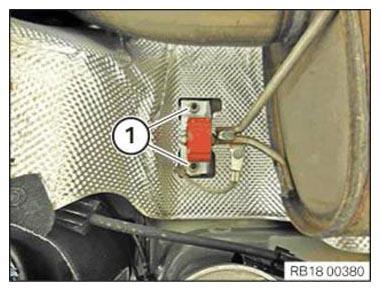

Slacken nuts (1).

Fig 3: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

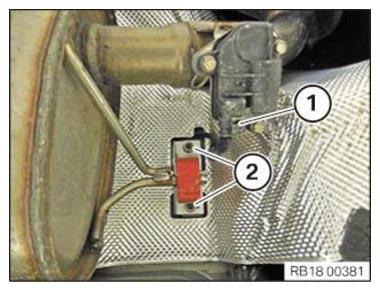

Unlock and disconnect plugs (1).

Slacken nuts (2).

Lower and remove exhaust system with assistance of a second person.

Fig 4: Identifying Plugs And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install exhaust system.

Tighten nut (2).

Tightening torque 18 20 2AZ .

Attach and lock connector (1).

Connector (1) must engage audibly.

Fig 5: Identifying Plugs And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

Tightening torque 18 20 2AZ

Fig 6: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten rubber mount (1).

Fig 7: Identifying Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Renew V-band clamp (1).

Parts: V-band clamp

V-band clamp (1).

Tighten V-band clamp (1).

Tightening torque 18 20 1AZ .

Fig 8: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install the BUMPER PANEL AT THE REAR
Check exhaust system for leaks.
